Key attributes
| Solar Panel Type | Monocrystalline Silicon | Controller Type | N/A |
| Free installation service | Yes | Place of Origin | Vietnam |
| Load Power (W) | custom |
Pre-sales project design
|
Y |
| Brand Name | SPV | Model Number | SPV100P |
| Application | Commercial | Battery Type | N/A |
| Mounting Type | Ground Mounting | Work Time (h) | 25 Years |
| Specification | Normal | Frame | Aluminum |
| J-Box | IP65 |
Operating range
|
-40 °C to +85 °C |
| Solar Power (W) |
100W
|
Packaging and delivery
| Selling Units | Single item | Single gross weight | 68.000 kg |
Lead time
| Quantity (pieces) | 1 – 200 | > 200 |
| Lead time (days) | 7 | To be negotiated |

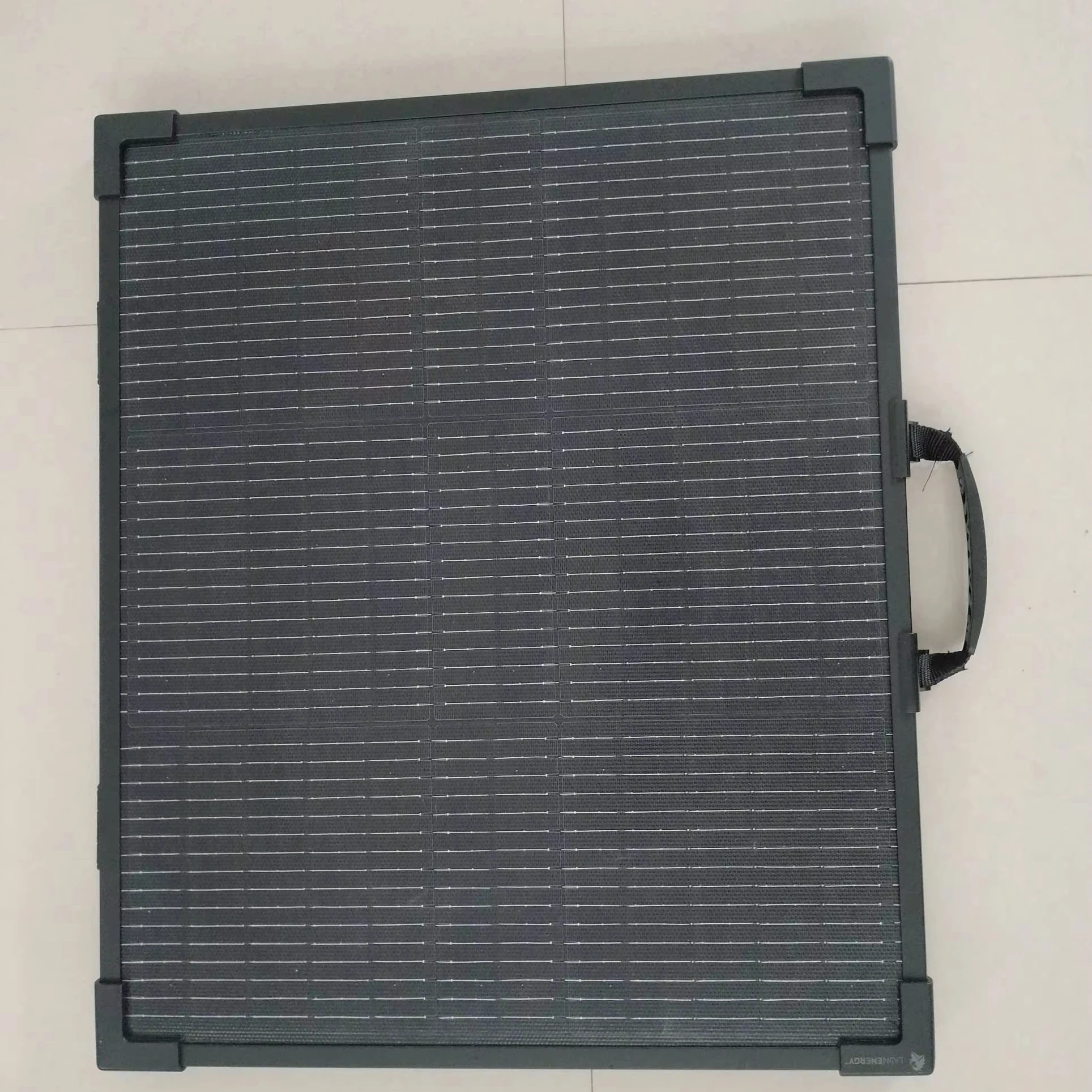

Specification
|
ELECTRICAL SPECIFICATIONS
|
100
|
|
Maximum Power Pmax
|
100 W (±3%)
|
|
Voltage at Maximum Power Point Vmp (V)
|
19.5
|
|
Current at Maximum Power Point Imp (A)
|
5.12
|
|
Open Circuit Voltage Voc (V)
|
21.5
|
|
Short Circuit Current Isc (A)
|
5.24
|
|
Dimession (mm)
|
1200 x 550 x 40
|
|
J-Box
|
IP65
|
|
Temperature Coefficient of Voc
|
-0.084 V/ºC (-0.38% /ºC)
|
|
Temperature Coefficient of Isc
|
4.4×10-3 A/ºC (0.05% /ºC)
|
|
Temperature Coefficient of Pmax
|
-0.75 W/ºC (-0.50% /ºC)
|
|
Warranty
|
5 years
|
|
Weight (Kg)
|
9.5 kg
|
|
Material
|
Solar World Poly Cell (German)
|
